標準同步帶寬度 K W L
09=9MM 11 16 28
15=15MM 17 22 34
25=25MM 27 32 44
30=30MM 32 37 49

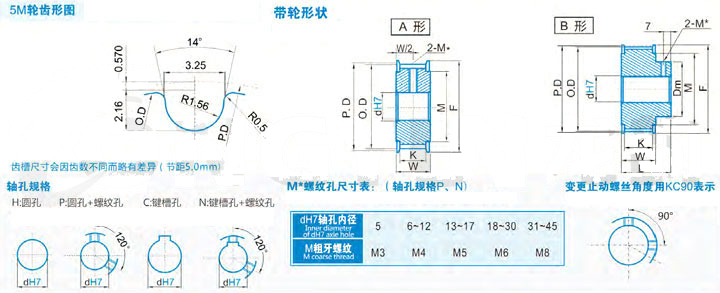

規格 形狀 節徑P.D 外徑O.D 擋邊外徑F 擋邊內徑M 輪轂直徑Dm 內孔dH7
A形 B形|C形
H P C|N H P C|N
5M*14 A|B 22.28 21.14 25 16 14 6~10 6~10 8|10 6~10 6~8
5M*15 23.87 22.73 28 18 15 6~10 6~10 8|10 6~10 6~8
5M*16 25.46 24.32 32 20 17 7~12 7~12 8~12 7~12 7~10 8
5M*18 28.65 27.51 33 22 19 7~14 7~12 8~12 7~14 7~11 8|10
5M*19 30.24 29.10 35 24 19 6~16 6~16 8~16 6~15 6~11 8|10
5M*20 31.83 30.69 35 24 19 7~16 7~16 8~16 7~15 7~11 8|10
5M*22 35.01 33.87 41 28 24 7~19 7~18 8~18 7~19 7~15 8~12
5M*24 38.20 37.06 44 32 27 7~22 7~20 8~20 7~22 7~17 8~13
5M*25 39.79 38.65 44 32 27 7~22 7~20 8~20 7~22 7~17 8~15
5M*26 41.38 40.24 48 36 31 8~27 8~22 8~22 8~27 8~21 8~17
5M*28 44.56 43.42 48 36 32 8~27 8~24 8~24 8~27 8~22 8~18
5M*30 47.75 46.61 51 36 33 10~28 10~26 10~26 10~28 10~23 10~18
5M*32 50.93 49.79 55 39 37 10~32 10~28 10~28 10~32 10~27 10~22
5M*34 54.11 52.97 60 46 40 10~37 10~30 10~30 10~36 10~30 10~25
5M*36 57.30 56.16 60 46 40 10~37 10~30 10~30 10~36 10~30 10~25
5M*40 63.66 62.52 67 50 47 10~42 10~38 10~38 10~42 10~35 10~28
5M*44 70.03 68.89 75 55 50 12~50 12~42 12~40 12~46 12~38 12~32
5M*48 76.39 75.25 83 63 60 12~55 12~45 12~40 12~55 12~45 12~40
5M*50 79.58 78.44 86 66 63 12~59 12~45 12~43 12~59 12~45 12~43
5M*60 95.48 94.34 99 78 75 12~72 12~45 12~45 12~71 12~45 12~45
5M*72 114.59 113.45 119 100 90 12~80 12~65 12~50 12~80 12~65 12~50
注:以上是本公司標準參考型號參數,具體型號根據您的要求定制加工。
基準額定功率表:Htd5M型號/同步帶寬度20mm(Kw) | |||||||||||||||
主動輪 | 主動輪齒數 | ||||||||||||||
轉速 | 14 | 16 | 18 | 20 | 24 | 28 | 32 | 36 | 40 | 44 | 48 | 56 | 64 | 72 | 80 |
20 | 0.013 | 0.015 | 0.018 | 0.021 | 0.026 | 0.031 | 0.036 | 0.041 | 0.047 | 0.060 | 0.068 | 0.078 | 0.088 | 0.096 | 0.107 |
40 | 0.026 | 0.031 | 0.034 | 0.039 | 0.049 | 0.057 | 0.070 | 0.081 | 0.094 | 0.111 | 0.124 | 0.148 | 0.166 | 0.187 | 0.207 |
60 | 0.036 | 0.044 | 0.049 | 0.057 | 0.070 | 0.086 | 0.101 | 0.119 | 0.137 | 0.163 | 0.184 | 0.216 | 0.246 | 0.275 | 0.306 |
100 | 0.060 | 0.070 | 0.081 | 0.094 | 0.117 | 0.143 | 0.169 | 0.197 | 0.228 | 0.267 | 0.301 | 0.255 | 0.404 | 0.454 | 0.506 |
200 | 0.119 | 0.140 | 0.161 | 0.182 | 0.231 | 0.280 | 0.335 | 0.391 | 0.454 | 0.524 | 0.594 | 0.703 | 0.801 | 0.903 | 1.002 |
300 | 0.161 | 0.190 | 0.218 | 0.246 | 0.312 | 0.378 | 0.449 | 0.527 | 0.607 | 0.698 | 0.786 | 0.931 | 1.064 | 1.196 | 1.329 |
400 | 0.200 | 0.236 | 0.270 | 0.306 | 0.384 | 0.467 | 0.555 | 0.649 | 0.745 | 0.853 | 0.962 | 1.139 | 1.299 | 1.463 | 1.624 |
500 | 0.239 | 0.278 | 0.319 | 0.363 | 0.454 | 0.550 | 0.654 | 0.760 | 0.874 | 0.999 | 1.124 | 1.331 | 1.520 | 1.709 | 1.897 |
600 | 0.272 | 0.319 | 0.366 | 0.415 | 0.519 | 0.628 | 0.745 | 0.869 | 0.996 | 1.136 | 1.276 | 1.513 | 1.725 | 1.940 | 2.153 |
700 | 0.306 | 0.358 | 0.412 | 0.467 | 0.581 | 0.705 | 0.835 | 0.970 | 1.113 | 1.266 | 1.421 | 1.684 | 1.923 | 2.158 | 2.397 |
800 | 0.340 | 0.397 | 0.454 | 0.517 | 0.643 | 0.778 | 0.919 | 1.069 | 1.224 | 1.391 | 1.559 | 1.847 | 2.107 | 2.369 | 2.628 |
870 | 0.366 | 0.425 | 0.487 | 0.553 | 0.688 | 0.830 | 0.981 | 1.139 | 1.297 | 1.476 | 1.652 | 1.956 | 2.234 | 2.511 | 2.786 |
900 | 0.374 | 0.436 | 0.500 | 0.566 | 0.703 | 0.851 | 1.004 | 1.165 | 1.329 | 1.513 | 1.694 | 2.002 | 2.288 | 2.568 | 2.851 |
1000 | 0.404 | 0.472 | 0.540 | 0.612 | 0.760 | 0.919 | 1.085 | 1.258 | 1.432 | 1.629 | 1.821 | 2.156 | 2.459 | 2.763 | 3.064 |
1160 | 0.454 | 0.527 | 0.605 | 0.685 | 0.851 | 1.025 | 1.209 | 1.398 | 1.593 | 1.808 | 2.021 | 2.398 | 2.724 | 3.059 | 3.391 |
1200 | 0.464 | 0.542 | 0.620 | 0.701 | 0.872 | 1.051 | 1.237 | 1.435 | 1.632 | 1.850 | 2.068 | 2.444 | 2.789 | 3.132 | 3.468 |
1400 | 0.521 | 0.607 | 0.695 | 0.786 | 0.978 | 1.175 | 1.385 | 1.600 | 1.821 | 2.060 | 2.301 | 2.716 | 3.098 | 3.474 | 3.848 |
1450 | 0.537 | 0.626 | 0.716 | 0.807 | 1.002 | 1.207 | 1.419 | 1.643 | 1.868 | 2.111 | 2.356 | 2.784 | 3.173 | 3.557 | 3.938 |
1600 | 0.579 | 0.672 | 0.771 | 0.869 | 1.079 | 1.297 | 1.525 | 1.761 | 2.000 | 2.254 | 2.514 | 2.968 | 3.380 | 3.790 | 4.195 |
1750 | 0.617 | 0.718 | 0.822 | 0.929 | 1.152 | 1.385 | 1.626 | 1.878 | 2.132 | 2.400 | 2.672 | 3.152 | 3.591 | 4.021 | 4.444 |
1800 | 0.633 | 0.735 | 0.840 | 0.949 | 1.175 | 1.414 | 1.660 | 1.914 | 2.174 | 2.446 | 2.724 | 3.214 | 3.658 | 4.094 | 4.527 |
2000 | 0.685 | 0.797 | 0.910 | 1.027 | 1.271 | 1.525 | 1.790 | 2.065 | 2.340 | 2.630 | 2.927 | 3.448 | 3.920 | 4.382 | 4.835 |
2400 | 0.786 | 0.913 | 1.043 | 1.175 | 1.453 | 1.741 | 2.039 | 2.346 | 2.703 | 2.978 | 3.305 | 3.884 | 4.403 | 4.906 | 5.393 |
2800 | 0.882 | 1.025 | 1.170 | 1.318 | 1.622 | 1.940 | 2.267 | 2.605 | 2.950 | 3.300 | 3.653 | 4.278 | 4.833 | 5.362 | 5.869 |
3200 | 0.976 | 1.131 | 1.292 | 1.455 | 1.785 | 2.132 | 2.491 | 2.854 | 3.222 | 3.596 | 3.972 | 4.634 | 5.209 | 5.751 | 6.255 |
3600 | 1.066 | 1.235 | 1.408 | 1.585 | 1.943 | 2.316 | 2.698 | 3.087 | 3.476 | 3.871 | 4.265 | 4.950 | 5.536 | 6.070 | 6.553 |
4000 | 1.154 | 1.336 | 1.523 | 1.712 | 2.096 | 2.493 | 2.895 | 3.305 | 3.713 | 4.122 | 4.527 | 5.228 | 5.806 | 6.320 | 6.756 |
5000 | 1.362 | 1.575 | 1.790 | 2.008 | 2.446 | 2.893 | 3.341 | 3.785 | 4.224 | 4.649 | 5.061 | 5.739 | 6.232 | 6.592 | 6.806 |
6000 | 1.564 | 1.803 | 2.044 | 2.288 | 2.773 | 3.256 | 3.730 | 4.190 | 4.626 | 5.038 | 5.420 | 5.982 | 6.268 | 6.314 | 6.117 |
7000 | 1.748 | 2.008 | 2.270 | 2.532 | 3.051 | 3.554 | 4.034 | 4.480 | 4.890 | 5.251 | 5.557 | 5.897 | 5.837 | 5.407 | 4.581 |
8000 | 1.920 | 2.200 | 2.478 | 2.55 | 3.292 | 3.798 | 4.260 | 4.667 | 5.012 | 5.282 | 5.463 | 5.461 | 4.895 |
